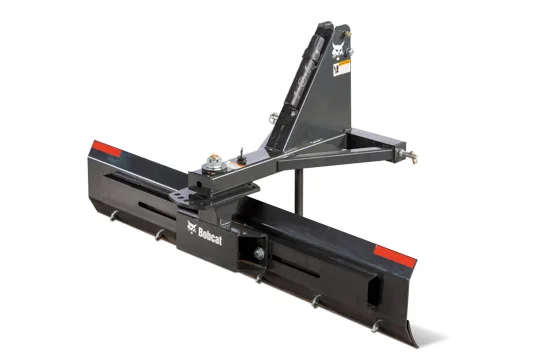

Bobcat Angle Blade – 3PT, 84″ Attachment
An economical choice for leveling, backfilling, grading and removing snow on farms or acreages. This implement does not require PTO. Blade can be rotated 360 degrees and angled to move material from either side. Use the blade in forward or reverse.
Compatible With:
TractorsUtility Work Machines
Bobcat Angle Blade – 3PT, 84″ Attachment
Let's Get Started
"*" indicates required fields
Key Specifications
Operating Weight 348 lb
Length 40 in
Width 84 in
Moldboard Width 84 in
Moldboard Dimension 15 in
Cutting Edge 6 in
Hitch Category 1
Adjustment Types Manual (360 Degree Rotation)
Offset (Max) 12 in. left or right
Forward Pivot 5 Positions (7 degrees each)
Reverse Pivot 5 Positions (7 degrees each)
Key Features
Rotate and Reverse The 3-point angle blade rotates a full 360 degrees with five forward and five reverse settings to be pulled or pushed.
Three Widths Available in 60-inch, 72-inch and 84-inch blade widths
Category 1, 3-Point Hitch A 3-point hitch is used to attach your rear-mounted angle blade implement. An adjustable top link is centered above two lower link arms, comprising the three points. The angle blade implement quickly and easily attaches with connecting pins at each point.
Snow Performance The 3-point angle blade pushes or scrapes snow from roads or the middle of parking areas
Gravel Road Performance Finish-grades gravel roads and driveways, levels land, or backfills areas around buildings or feedlots
No PTO The angle blade implement does not require PTO. Simply attach it to your compact tractor’s 3-point hitch and get started. It rotates a full 360 degrees with five forward and five reverse blade angle settings.
