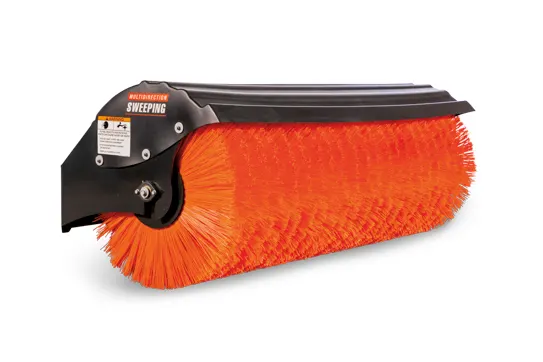

Bobcat Angle Broom – 52″ Attachment

Efficiently sweep and clean with the hydraulically driven angle broom attachment . Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass. Reverse bristle rotation available on the 68-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles

Compatible With:


Bobcat Angle Broom – 52″ Attachment

Let's Get Started

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Key Specifications

Operating Weight 355 lb
Length 48.3 in
Width 54.5 in
Height 28.6 in
Bristle Material Replaceable Polypropylene
Broom Angling Hydraulic
Broom Bristle Diameter 26 in
Drive System Hyd. Motor
Oscillation Fixed
Sweep Width (Fully angled) 48 in
Sweep Width (Straight) 51.5 in
Flow Range Low 9 gal/min
Flow Range High 18 gal/min
Number of Bristle Sections - Zig Zag 26
Number of Bristle Sections - Straight 0
Sweep Width (Fully angled) 25°
Number of Bristle Sections 27

Key Features

Self-Centering Hydraulic Angling This system keeps the attachment centered on the machine and avoiding the risk of the attachment becoming offset. The unit stays centered in front of the machine to help with keeping the machine on the sidewalk, reducing damage to surfaces outside of the desired cleaning area.
Compact Design The angle broom attachment is compact and highly maneuverable, giving the operator maximum efficiency.
Easy Maintenance The quick-change rotor design makes bristle replacement quick and easy. By simply removing two bolts, the entire rotor is released.
Angle Control The smaller broom features a manual angle up to 25 degrees left or right. The larger brooms feature electric-over-hydraulic control for angle adjustment up to 25 degrees.
Fingertip Controls Precise attachment control helps to finish the job quickly and efficiently, without having to leave the comfort of the cab. This applies to larger brooms with electric-over-hydraulic angle control.
Multi-Directional Sweeping Remove debris from curbs, gutters, corners, and obstacles by reversing the direction of the bristles (only available on 68-inch and 84-inch brooms).
Flush Sweeping The angle broom allows for flush sweeping along a curb or wall for improved cleaning.
High-Torque Motor The high-torque motor allows for maximum power for more efficient sweeping even when engaging heavier debris.
Storage Stand Larger brooms include storage stands to provide maximum uptime protection by eliminating bristle distortion when the broom is not in use. On 68-inch and 84-inch angle broom attachments, the stands use a lever to swing the legs up or down. In the down position the legs are closer to the bristles to make attaching to the machine easier.
Patented Spring Design The patented spring design supports optimum down pressure, extended bristle life and excellent cleaning.
Heavy-Duty Bristles The replaceable, polypropylene wafer bristles provide excellent life and cleaning ability.
