Bobcat Hydraulic Tilt Coupler Attachment

Get Quote

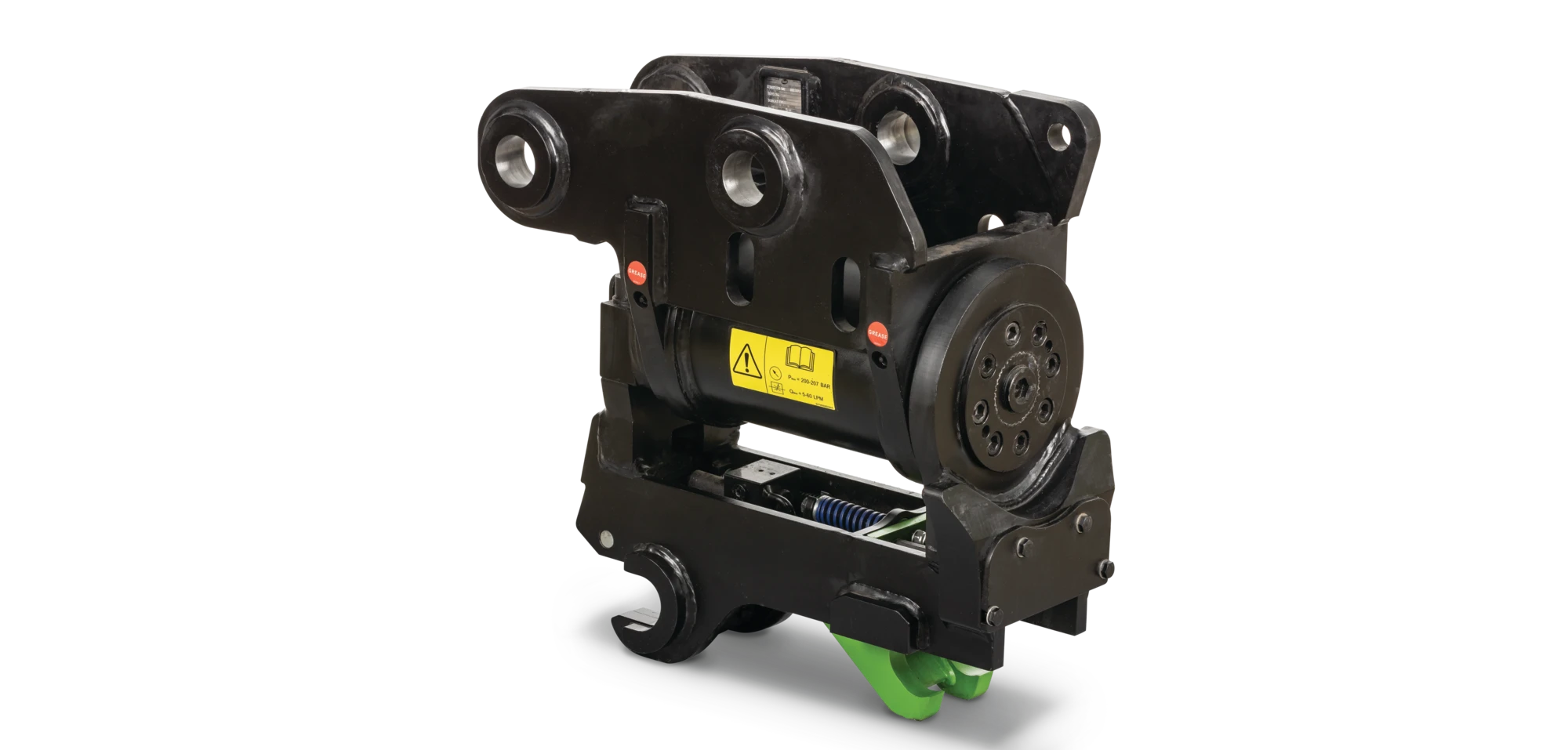

Browse Specs and more for the Bobcat Hydraulic Tilt Coupler Attachment - Bobcat of North Texas

Bobcat Hydraulic Tilt Coupler Attachment

  • Quickly adjusts bucket or attachment angle.
  • Saves time spent on repositioning the excavator to find the right approach angle.
  • Rotates any bucket or attachment as much as 134 or 180 degrees, depending on model.
  • Integrated lift eye assists in lifting and placing heavy materials.
  • Compatible with E88 compact excavator and E145 large excavator.
  • Tilt Coupler would only work on excavators that are coupler ready.

Compatible With:

Compact Excavators - E88 (Long-Arm)

Large Excavators - E145

Get Quote

How The Bobcat Hydraulic Tilt Coupler Attachment Works

With a TC08 hydraulic tilt coupler, excavator operators can rotate any bucket or other attachment as much as 180 degrees for leading jobsite versatility and productivity. The TC14 tilt coupler rotates buckets or other attachments as much as 134 degrees. Each coupler has an integrated lift eye for added functionality, including lifting and placing heavy materials. Please ensure your excavator is coupler ready before attempting to use the Tilt coupler.

Bobcat Hydraulic Tilt Coupler Attachment Specs

Side-to-Side Rotation 134 deg - 180 deg
Length 26.3 in - 31.2 in
Operating Weight 549 lbs - 822 lbs
Width 12.8 in - 17.5 in
Height 24.7 in - 27 in

Bobcat Hydraulic Tilt Coupler Attachment Features

Increased Jobsite Productivity

This relatively small component makes a big difference for your jobsite performance. Operators can quickly adjust the bucket or attachment angle rather than repeatedly moving the entire machine. Save time and effort on ground-shaping tasks, site development work, setting underground utilities, clearing ditches and many more applications.

Greater Attachment Rotation

Gain optimal movement to consistently find the right working angle for your attachment. The TC08 hydraulic tilt coupler can rotate buckets and attachments up to 180 degrees, while the TC14 tilt coupler offers up to 134 degrees of rotation.

Lift Eye

Bobcat hydraulic tilt couplers feature an integrated lift eye to provide a single connection point for lifting and placing heavy materials.

Compact Size, No Exposed Cylinders

The coupler is powered by a hydraulic actuator rather than hydraulic pistons for compact yet durable performance at the excavator’s working end.

Greater Attachment Functionality

The hydraulic tilt coupler will save you time and effort on ground-shaping tasks, site development work, setting underground utilities, brush cutting, landscaping, finish grading and many more applications.

ISO 13031 Compliant

Bobcat hydraulic tilt couplers are ISO compliant and built to last.

Bucket Reverse

Bobcat hydraulic tilt couplers allow operators to quickly disconnect and reconnect the bucket in the reverse position – without leaving the cab. This allows the bucket to work in "shoveling mode" for effective backfilling against walls and under utility lines.

Protected Hose Routing

The hose routing is designed to support unobstructed, full rotation to safeguard against damage to the hoses, protecting productivity and preventing downtime.

High-Strength Steel

Bobcat hydraulic tilt couplers are manufactured with high-strength steel for long-lasting durability.

Enhanced Attachment Versatility

Rotate any attachment to find the right working angle in tight jobsites where the options for machine positioning are limited. The TC08 hydraulic tilt coupler can rotate buckets and attachments up to 180 degrees, while the TC14 tilt coupler offers up to 134 degrees of rotation – so you can utilize the full capabilities of your machine and attachment.
