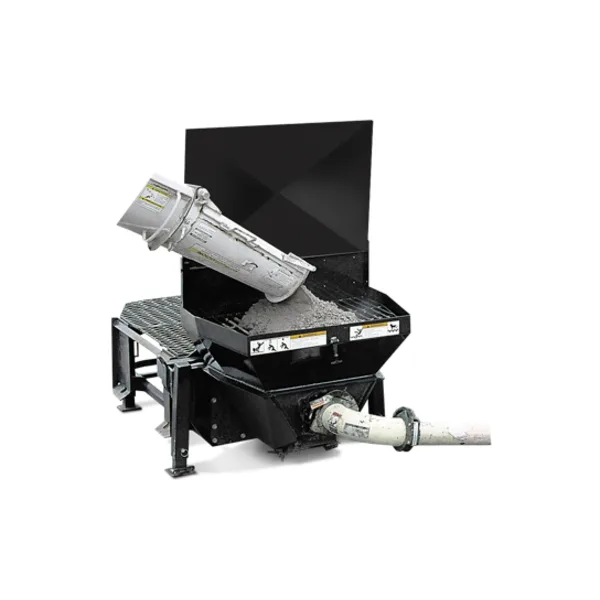

Bobcat Concrete Pump Attachment

Get Quote
Browse Specs and more for the Bobcat Concrete Pump Attachment - Bobcat of North Texas

Bobcat Concrete Pump Attachment

  • Simplifies concrete pouring in hard-to-reach locations
  • Pumps concrete as far as 250 feet horizontally and up to two stories vertically
  • Place up to 18 cubic yards of concrete per hour with a standard, hydraulic-flow loader
  • High-flow loaders can place up to 28 cubic yards of concrete per hour

Compatible With:

Compact Track Loaders - T550, T595, T64, T650, T66, T740, T76, T770, T86

Skid-Steer Loaders - S590, S64, S650, S66, S76, S770, S86

Get Quote

How The Bobcat Concrete Pump Attachment Works

Attach your Bobcat® loader to either side of the concrete pump and position the unit where you need it. Then connect the hoses, feed the concrete mix into the hopper and pump.

Bobcat Concrete Pump Attachment Specs

Concrete Cylinder Diameter 6 in
Length 102.9 in
Concrete Cylinder Stroke 24 in
Maximum Aggregate Size 1.5 in
Maximum Concrete Pressure 750 psi
Swing Tube Diameter 5 in
Swing Valve Cylinder Diameter 3 in
Swing Valve Cylinder Stroke 6 in
Operating Weight 2200 lbs
Width 47.9 in
Pumping Cylinder Diameter 3 in
Vertical Pumping Height 50 ft
Horizontal Pumping Distance 250 ft
Hopper Capacity 10 cubic ft
Height 54.9 in

Bobcat Concrete Pump Attachment Features

Versatility

Dual mounting positions allow the hopper to be placed on the right or left side of the loader.

High-Performance

The pump can place as much as 28 cubic yards of concrete per hour, depending on the loader’s hydraulic flow.

Ease of Use

The pump’s control panel swivels for easier operation.

Remote Control Convenience

With the remote attachment control, operators can start and stop the loader; start, stop and reverse the pump; and turn the high-flow hydraulics on or off from outside the cab.

Adjustable Legs

The pump’s legs can be easily adjusted to quickly accommodate uneven terrain.

Protective Guard Panel

The protective guard panel screens out larger objects from the concrete mix.
