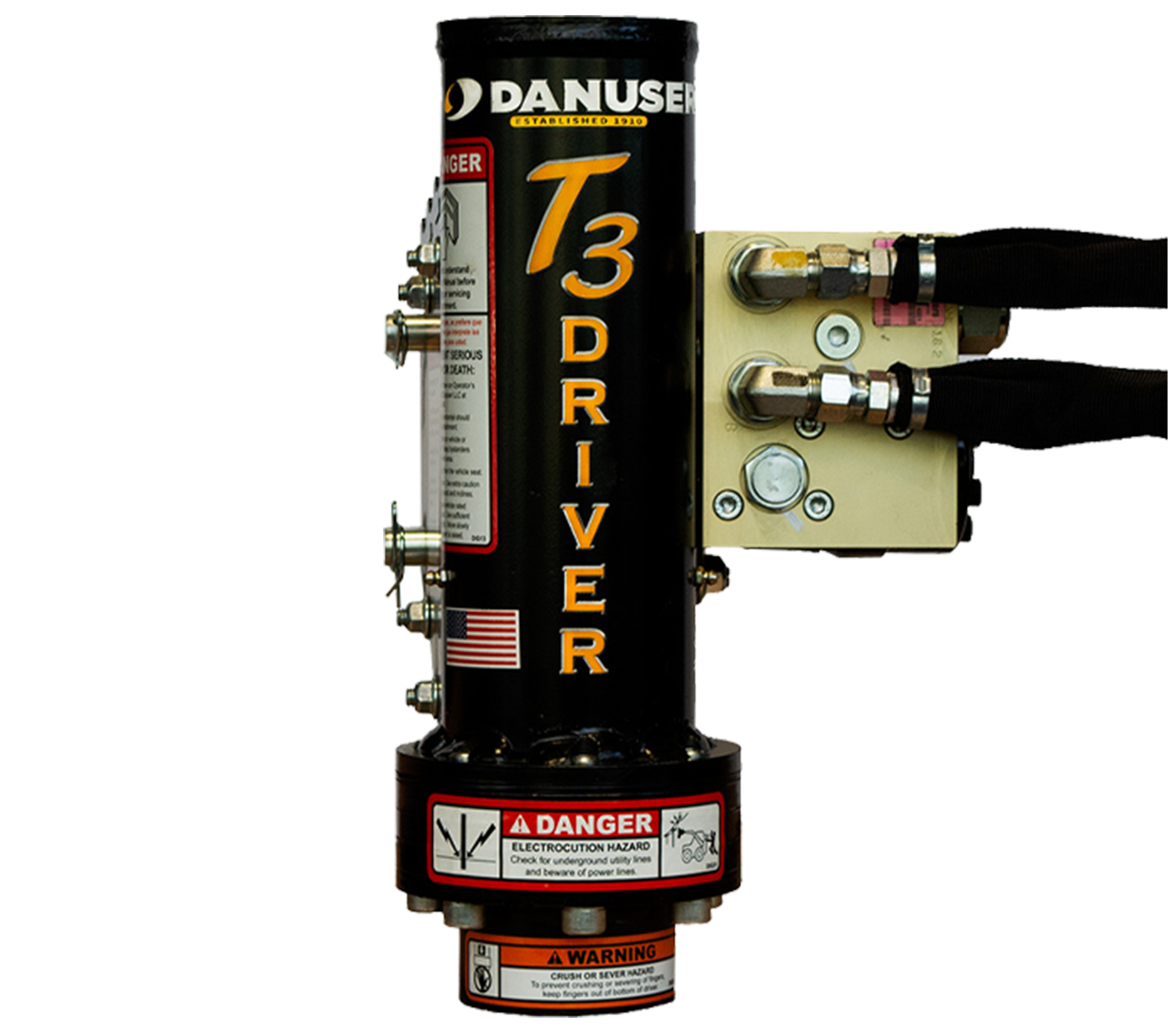

T-Post Post Driver
The T3 Driver will drive T-posts up to a 3″ O.D. pipe at a rate of up to six strikes per second. The top of the post is fully contained to prevent kick out and protected from damage by the strike plate. Use your tractor, skid-steer, mini-ex, loader, or backhoe to carry the weight of the driver. This is an ideal post driver for most farmers, ranchers, fencing contractors, and rental yards.
Compatible With:
Compact Track LoadersLoadersSkid-Steer Loaders
Skid-Steer Loaders
Key Specifications
Post Dimensions T-post to Railroad tie
Impact Force 82,000 lb.
Impact Energy 1,709 ft.-lb.
Length of Stroke (inches) 40"
Hammer Weight 500 lb.
Strokes per Minute 35
Overall Length (inches) 45.5"
Overall Width (inches) 25.5"
Overall Height (inches) 64"
Tilt (left or right) (degrees) 20°
Machine Weight 1,245 lb.
Hydraulic Requirements 1,500 - 3,000 PSI; 12 - 30 GPM
Maximum Post Width (inches) 8.5" x 9.25"
Tractor Requirements 75 HP Minimum
Key Features
Mounts Skid-Steer, Tractor Front-End Loader Skid-Steer, and Euro/Global are standard mount options. Backhoe & Excavator custom mounts are available by submitting the form in the Custom Mounts section below.
Grapple Grapple option can be added to any model for a true one-person operation (does not include t-posts). The grapple option will allow the operator to grab the post off the ground, load it into the machine, and drive it in the ground without leaving the skid-steer seat.
Tilt Tilt option allows up to 20˚ in each direction.
Additional Weight Kit The hammer weight is 300 lb. from the factory. Additional weight can be added for a total of 500 lb.
