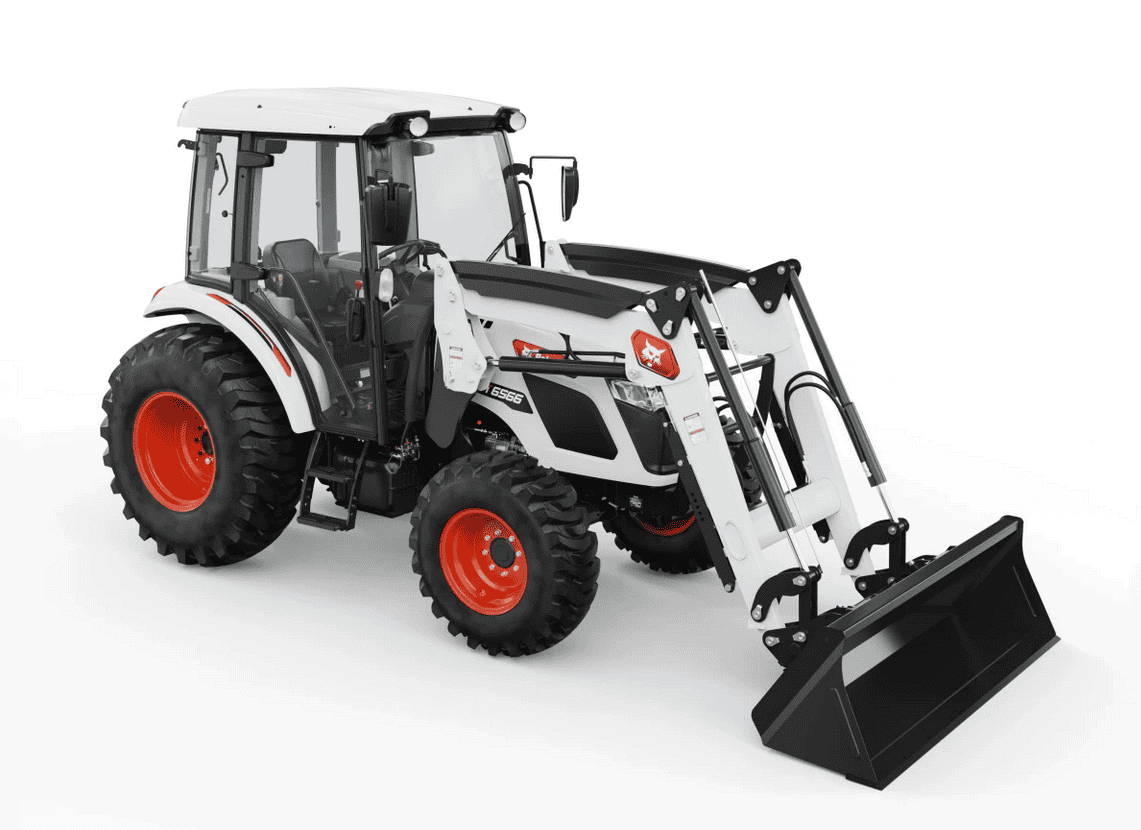

Bobcat UT6566 Utility Tractor
The BobcatĀ® UT6566 helps you stay comfortable and confident while tackling projects. Its high performance and next-level implement versatility get the job done with efficiency and ease of use.
66.4 hp
Horsepower
5,830 lb
Operating Weight
3,898 lb
Lift Capacity
Bobcat UT6566 Utility Tractor
Let's Get Started
"*" indicates required fields
Bobcat UT6566 Utility Tractor Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Horsepower 66.4 hp
Lift Capacity at 24" behind Lift Point 3,898 lb
PTO HP 51.1 hp
Transmission Type 3 Range Powershuttle (w/electronic clutch)
Width 77.2 in
Turning Radius 12' 3"
Wheelbase 6' 10"
Performance
Travel Speed 19.8 mph
Travel Speed - Reverse 19.5 mph
3-Point Hitch Category 2
3-pt Lift Control Type Position with Draft Control
Lift Capacity at 24" behind Lift Point 3,898 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 51.1 hp
Fuel Tank 25.1 gal
Brake Type Wet Multi Disc
Transmission Type 3 Range Powershuttle (w/electronic clutch)
Emissions Tier (EPA) Tier 4
Horsepower 66.4 hp
Displacement 149 inĀ³
Number of Cylinders 4
Engine Model 4HT-TP4A
Implement Hydraulic Flow 10.99 gal/min
Total Hydraulic Flow 19.23 gal/min
Steering Hydraulic Flow 8.24 gal/min
Dimensions
Length 148.8 in
Width 77.2 in
Height 99.3 in
Ground Clearance 12.3 in
Turning Radius 12' 3"
Wheelbase 6' 10"
Front Tire Size Front Industrial (AG, multi-use) 12.5/80-18 (9.5-24, 340/80R18)
Rear Tire Size Rear Industrial (AG, multi-use) 18.4-24 (16.9-30, 480/80R26)
