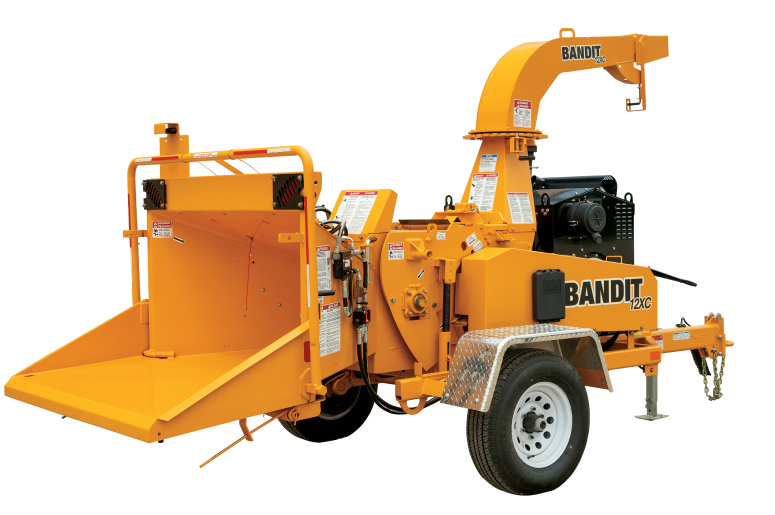

Bandit INTIMIDATOR™ 12XC – Towable Chipper

TOWABLE DRUM STYLE HAND-FED CHIPPER

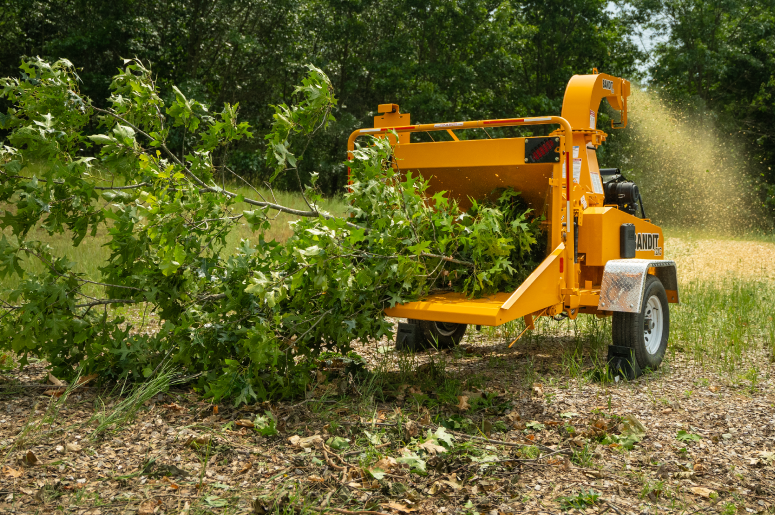

The 12XC will process tree trimmings, limbs, and brush quickly and efficiently. The 15 ¾” diameter single top feed wheel will pull in and compress stubborn branches, guiding them to the drum. Adjustable side mounted down pressure springs allow for a range of down pressure settings and an optional hydraulic lift cylinder is available to enhance down pressure capabilities reducing the need to trim or re-position material leading to greater productivity.

A durable 20” diameter x 13 ¼” wide two-knife drum is standard with the fabricated components backed by a 5-year “GUTS” warranty. To assist with enhanced chipping throwing power, a slot called the “Power Slot” is located on the front side of the drum housing allowing for increased air flow or in the event of machine plugging significantly simplifying the unplugging process.

12 in

Capacity

100 ft/min

Feed Rate

4,800 pounds

Weight

Bandit INTIMIDATOR™ 12XC – Towable Chipper Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Feature 1 49.4 - 74 horsepower gas and diesel engine options available
Feature 2 20" diameter x 13 1/4" wide drum with two knives
Feature 3 (1) 15 3/4" diameter x 15 7/8" wide feed wheel
Feature 4 30 3/4" high x 54" infeed with folding tray
Feature 5 Single 7,000 pound axle with 235 / 80R 16" tires
Feature 6 360 degree manual dicharge chute with end chip deflector
Feature 7 Reversing auto feed
Feature 8 Adjustable side mounted down pressure springs
Feature 9 Hydraulic flow control
Feature 10 Optional hydraulic lift cylinder

Performance

Capacity 12 in
Opening 12 1/2" x 16 1/4"
Feed Rate 100 ft/min
Fuel Tank 18 gallons
Hydraulic Tank 8 gallons

Dimensions

Width 79 in
Height 100"
Length 191"
Weight 4,400 - 4,800 pounds
