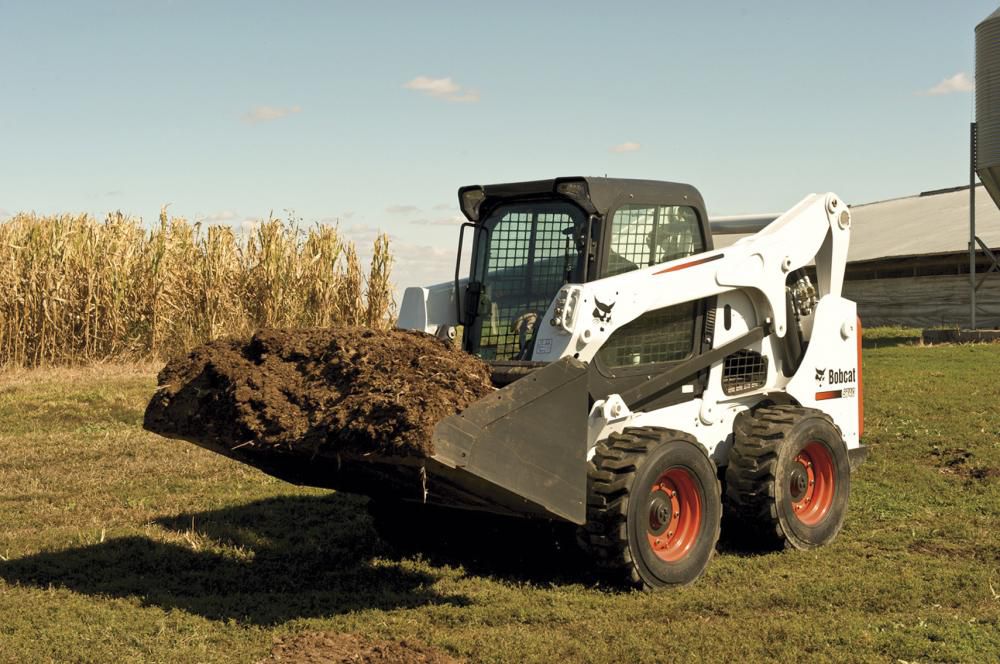

Bobcat S740 Skid-Steer Loader

The Bobcat® S740 skid-steer loader delivers industry-leading breakout forces, rated operating capacities and faster cycle times.

74 hp

Horsepower

3,100 lb

Operating Capacity

8794 lb

Operating Weight

Bobcat S740 Skid-Steer Loader

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat S740 Skid-Steer Loader Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 74 hp
Rated Operating Capacity (ISO) 3,100 lb
Operating Weight 8794 lb
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 30.5 gal/min
Joystick Control Optional
Fuel Tank 23.9 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 30.5 gal/min

Performance

Rated Operating Capacity (ISO) 3,100 lb
Tipping Load 6200 lb
Operating Weight 8794 lb
Travel Speed 7.1 mph
Travel Speed (2-speed option) 12.3 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine yes

Dimensions

Length 141.6 in
Length without Attachment 114.3 in
Length with Standard Bucket 141.6 in
Width 72.1 in
Width (with bucket) 74 in
Height 81.3 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 131.4 in
Reach @ Maximum Height 33.6 in
Turning Radius 85.8 in
Wheelbase 48.3 in

Bobcat S740 Skid-Steer Loader Features

Powerful Hydraulics

Powerful Hydraulics

Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Selectable Joystick Control

Selectable Joystick Control

No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.

Increased Lifting Capabilities

Increased Lifting Capabilities

R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.

Redesigned Bobcat Engine

Redesigned Bobcat Engine

R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

Premium Comfort

Premium Comfort

Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

Touch Display

Touch Display

The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio offers Bluetoothâ„¢ connectivity. It includes a durable, waterproof touchscreen.

Improved Cooling System

Improved Cooling System

The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high capacity radiator.

Bob-Tach Attachment System

Bob-Tach Attachment System

Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.

Effective Weight Balance

Effective Weight Balance

Bobcat skid-steer loaders offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.
