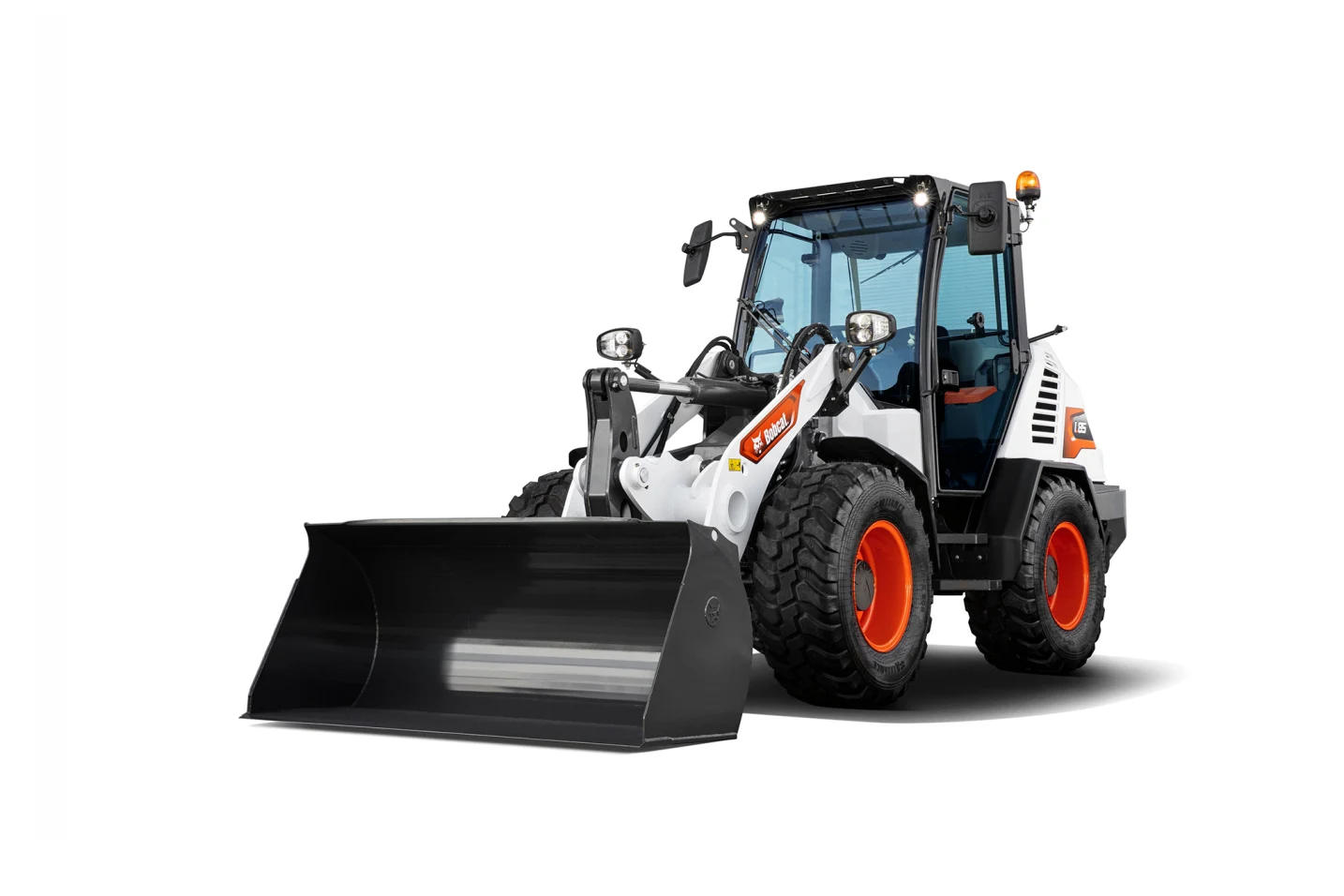

Bobcat L85 Compact Wheel Loader

If you have the will, the Bobcat® L85 compact wheel loader will provide the way with leading performance, maneuverability and versatility. With a high lift height and standard bucket capacities of up to 1-cubic yard, the L85 compact wheel loader excels at material-handling jobs and many other applications.

68 hp

Horsepower

3,974 lb

Operating Capacity

11164 lb

Operating Weight

Compact Wheel Loader Financing & Cash Rebates

0% for 36 or rebates up to $5k on select Compact Wheel Loaders

Bobcat L85 Compact Wheel Loader Features

Impressive Lifting Capabilities

Impressive Lifting Capabilities

Standard bucket capacities of up to 1-cubic yard make fast work of tough material handling in landscaping, construction, agriculture and other industry applications.

Tight Turning Radius

Tight Turning Radius

The compact wheel loader’s articulated steering delivers nimble performance and high maneuverability through its articulation joint, allowing for easy obstacle navigation and efficient work in jobsites where space is limited.

2-Speed Control

2-Speed Control

With two speed ranges, operators can adapt the performance of the Bobcat compact wheel loader to whatever the job requires.

Spacious, Pressurized Cab

Spacious, Pressurized Cab

The roomy, comfortable, ROPS/FOPS Level II certified cab is engineered for all-day operation with low noise levels, easy-to-reach, intuitive controls and a comfortable seat with an adjustable, seat-mounted joystick. The tall, wide windows provide an optimal glass-surface area for high visibility and the cab’s pressurized environment repels dust and improves the efficiency of heat and air conditioning for comfortable operation on even the longest days.

Bobcat Engine

Bobcat Engine

The Bobcat® Tier 4, turbo charged engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter or selective catalyst reduction. This means fewer components for easier maintenance, and no downtime for regeneration. Operators will also appreciate the engine’s reliable cold weather starting and a variety of features that make maintenance and service more convenient.

Multi-Carrier Versatility

Multi-Carrier Versatility

Bobcat compact wheel loaders come standard with the Power Bob-Tach System and share select attachments with other Bobcat equipment, giving you the most versatility and productivity for your dollar.

Bobcat L85 Compact Wheel Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Operator Canopy Optional
Enclosed Operator Cab w HVAC Standard
Mechanical Susp Seat Standard
Air Ride Susp Seat Not Applicable
Joystick Control Standard
Keyed Ignition Optional
Keyless Ignition Standard
Speedometer Standard
Hour Meter Standard
Tilt and Telescoping Steering Wheel Standard
Travel Foot Pedal Standard
Cup Holders Standard
Front and Rear Work Lights Standard
Road Lights Standard
Rotating Flashing Beacon Optional
Four Way Flasher Standard
Turn Signals Standard
Advanced Attachment Control Standard
Auxiliary Hydraulics Standard
Engine Derate Standard
Glow Plug Engine Preheat Standard
High Flow Standard
Hydrostatic Transmission Standard
Tilt Lock Out Standard
Two Speed Travel Standard
Z Bar Linkage Standard
Backup Alarm Standard
Horn Standard
Lift Arm Lockout with Manual Bypass Standard
Lift-Arm Support Standard
OICS System Standard
Rear View Camera Optional
Seat Switch Standard
Side Mirrors Right and Left Standard
Wheel Fenders Standard
Horsepower 68 hp
Rated Operating Capacity with Bucket (Straight) 3,974 lb
Rated Operating Capacity with Bucket (Articulated) 3,257 lb
Rated Operating Capacity with Forks (Straight) 4,786 lb
Rated Operating Capacity with Forks (Articulated) 3,977 lb
Operating Weight 11164 lb
Auxiliary Std Flow 19.8 gal/min
Auxiliary High Flow 27 gal/min
Pump Capacity 27 gal/min
Width (over tires) 70.9 in
Fuel Tank 20.8 gal
Auxiliary Std Flow 19.8 gal/min
Auxiliary High Flow 27 gal/min
Drive Type 2-speed hydrostatic with Advanced Attachment Control

Performance

Rated Operating Capacity with Bucket (Straight) 3,974 lb
Rated Operating Capacity with Bucket (Articulated) 3,257 lb
Rated Operating Capacity with Forks (Straight) 4,786 lb
Rated Operating Capacity with Forks (Articulated) 3,977 lb
Tipping Capacity with Bucket (Straight) 7,947 lb
Tipping Capacity with Bucket (Articulated) 6,515 lb
Operating Weight 11164 lb
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 68 hp
Turbocharged Engine yes

Dimensions

Length with Standard Bucket 220 in
Width (over tires) 70.9 in
Width (with bucket) 74.8 in
Inside Turning Radius w Bucket 1986 mm
Turning Radius Outside 169.9 in
Outside Turning Radius w Forks 4591 mm
Wheelbase 82.7 in
Articulation Angle 40°
Oscillation Angle 8°
Dump Angle @ Maximum Height 45°
Ground Clearance 12.3 in
Height to Bucket Hinge Pin 10.66 ft
Rollback Angle 50°
Tire Size 405/70 R18
Wheel Tread 54.8 in

Compatible Attachments

Bobcat Combination Bucket Attachment

Designed to capitalize on the full capabilities of your Bobcat® compact wheel loader, this four-in-one attachment can be u...

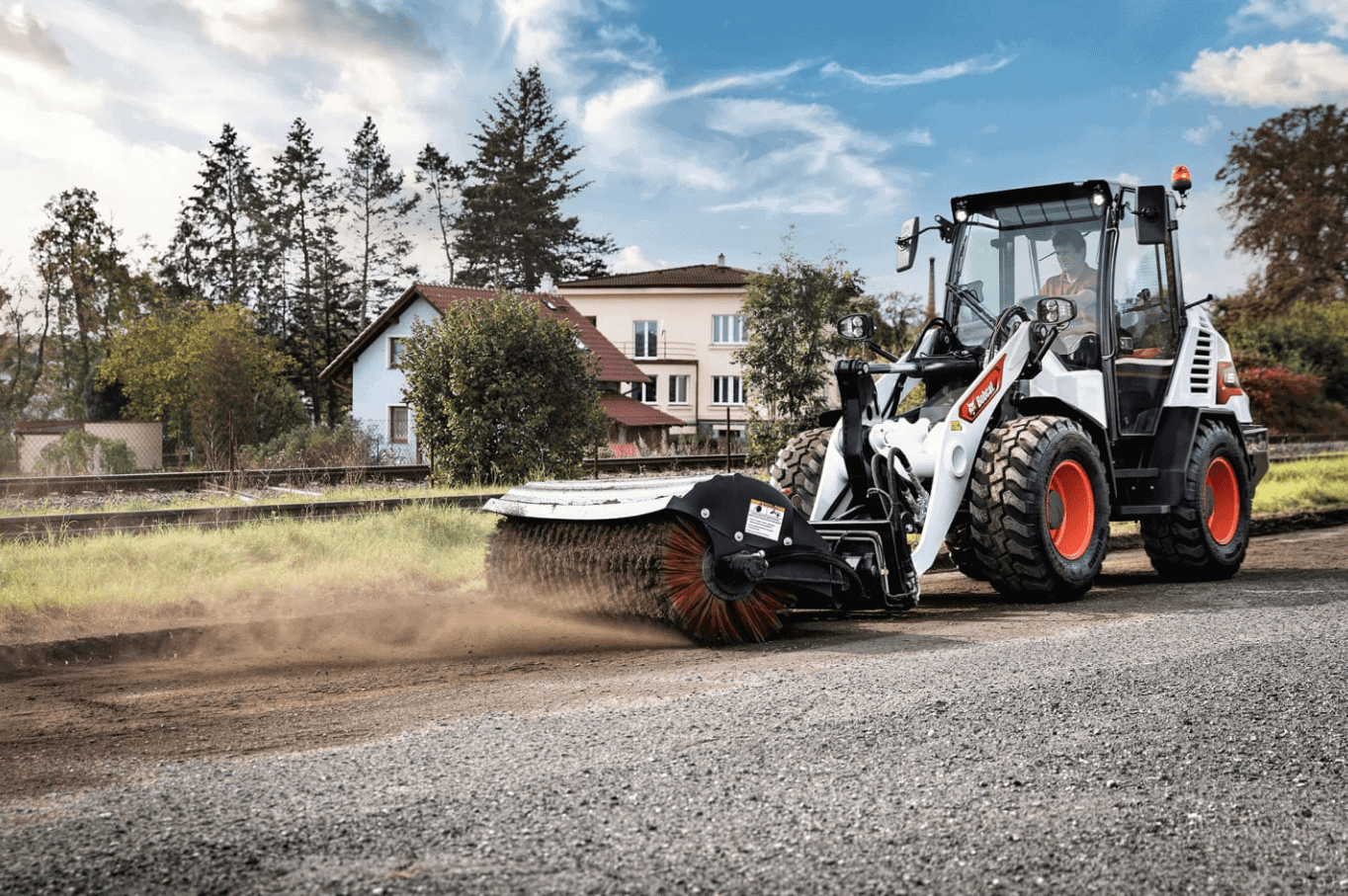

Bobcat Angle Broom Attachment

Efficiently sweep and clean with the hydraulically driven angle broom attachment Heavy-duty broom bristles create a cleane...

Bobcat General Purpose Bucket Attachment

The best combination of capacity, durability and ease of use with your Bobcat® compact wheel loader Ideal for light-duty...

Bobcat Rock Bucket Attachment

Separate rocks, debris and other unwanted objects while leaving finer material behind The tines scoop and retain debris ...

Bobcat Snow Blade Attachment

Plow through the deepest drifts and push large piles of snow Fingertip controls make it easy to configure the hydraulica...

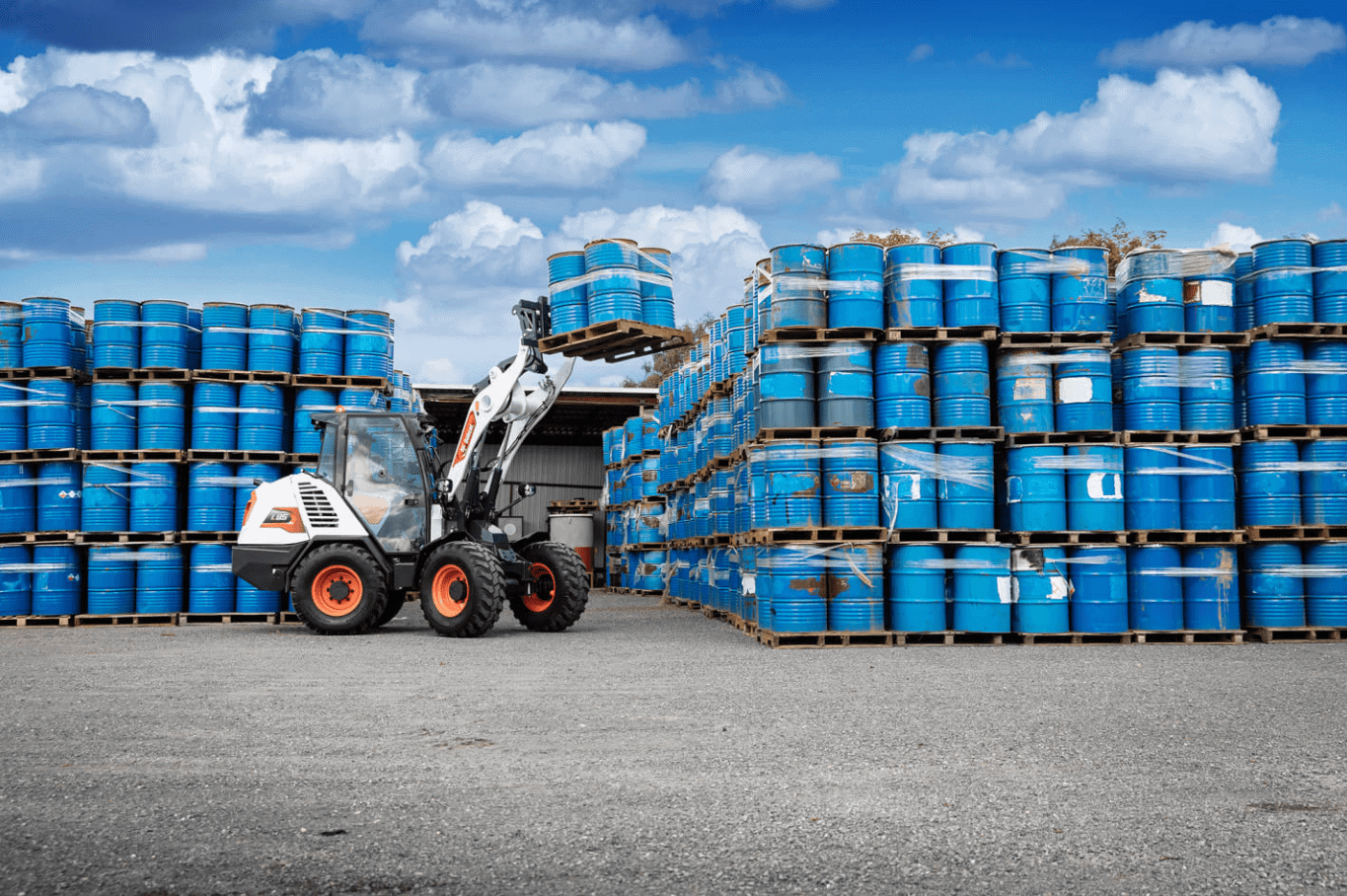

Bobcat Pallet Fork Attachment

Move bulky, bagged or palletized material quickly and easily with the pallet fork attachment Adjustable forks built for ...

Bobcat Landplane Attachment

Turn your compact loader into a powerful land planing tool with the landplane attachment Working in forward or reverse, ...

Bobcat Tiller Attachment

Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed Tear ...

Bobcat Utility Fork Attachment

Handle materials easier and move them faster Replaceable, tapered teeth handle a variety of farm and ranch chores easily...

Bobcat Root Grapple Attachment

Built to be the biggest, baddest biter of them all, to rip into tough jobs with ease Heavy-duty design provides extreme ...

Bobcat Auger Attachment

Dig holes with speed and plumb-line accuracy using a Bobcat® auger attachment The auger is ideal for applications that r...

Bobcat Light Material Bucket Attachment

Built to bring out the best in your loader’s capabilities Large capacity bucket features a high-back design and maximum ...

Bobcat Industrial Grapple Attachment

Built for maximum power and reliability Delivers easy handling of bulky, hard-to-manage materials in the industrial or c...
